Description

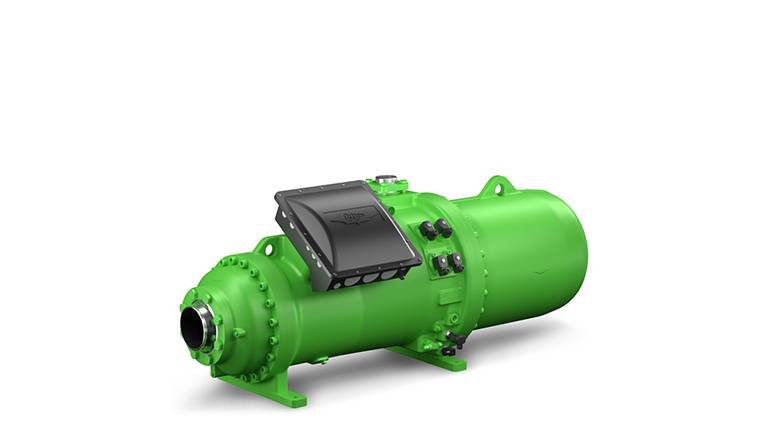

The compact screw compressors of the CSH2T95 version are designed for high-temperature heat pumps using R1233zd(E) and R245fa refrigerants. These models enable fluid outlet temperatures of up to 120 °C and are developed for process heating systems such as pressurised water heating or low-pressure steam generation. The CSH2T series differs by adapting all essential components to the elevated temperature level. The compressors are only available in combination with VARIPACK frequency converters for speed control. An advanced compressor protection device (SE-i1) monitors and records operating parameters such as pressures and temperatures in real time.
CSH2T95 compressors are only available to OEM system manufacturers with experience in building high-temperature heat pumps.
Refrigerants
- R1233zd(E), Safety Class A1
- R245fa, Safety Class B1
Product Range
- 4 displacement volume levels
- Volumetric flow rate: 615 to 910 m³/h at 50 Hz
- Operation up to 60 Hz possible in combination with VARIPACK frequency inverter
Certifications
- CE incl. UKCA
Application
Heat pumps for process heating and district heating networks with useful temperatures up to 120 °C, e.g. for:
- Pressurised water heating
- Thermal oil heating
- Low-pressure steam generation
Highlights
- Heating capacities of over 1 MW per compressor achievable – depending on operating conditions
- Optimised design and components for high-temperature applications – based on the CSH.5 series: Compressor design adapted to the temperature level, e.g.:
- Suction gas-cooled built-in motor in high-temperature version
- High-temperature rolling bearings
- High-temperature refrigeration oil B-CE500
Capacity Control
- Speed control with VARIPACK frequency inverter Enables a wide modulation range
- Perfect adaptation of heating capacity to system demand
- Wide range of models up to 480 A rated output current
Compressor Protection Device
- Advanced compressor protection device SE-i1 – Full Sensor Kit (FSK)
- Monitoring of operating limits including: Discharge gas temperature
- Minimum oil level
- High and low pressure
- Data logging
- Communication via Modbus RTU/Bluetooth
- Integration via BITZER BEST SOFTWARE
- And much more …
