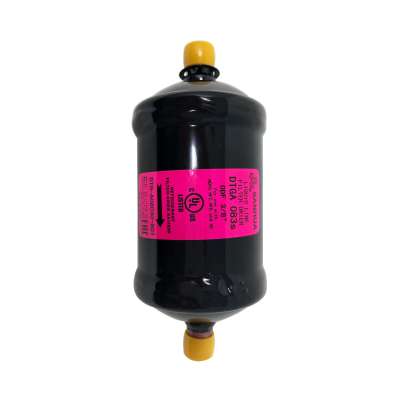

SANHUA FILTER DRIER ( DTG series)

Sanhua DTG Series

1. Superior Moisture Absorption

• Advantage: High-grade 3AA molecular sieve core.

• Benefit: Efficiently dries the refrigerant to extremely low dew points. This prevents ice formation at the expansion valve and stops the chemical reaction between moisture and oil that creates damaging acids.

2. High Acid Neutralization

• Advantage: Precision-blended core materials.

• Benefit: Actively removes organic acids created by compressor overheating or motor burnouts. This protects the compressor motor windings from insulation failure and “burnout” cycles.

3. Minimal Pressure Drop

• Advantage: Optimized core porosity and flow-path design.

• Benefit: Ensures that the drier doesn’t act as a restriction in the liquid line. This keeps the subcooling high and prevents “flash gas,” ensuring the expansion valve operates at 100% capacity.

4. Burst-Proof Reliability

• Advantage: High-strength steel housing and robotic welding.

• Benefit: Provides a high safety margin against pressure spikes (burst pressure is typically >200 bar). It offers peace of mind for high-pressure R410A and R32 systems, where traditional driers might fail.
