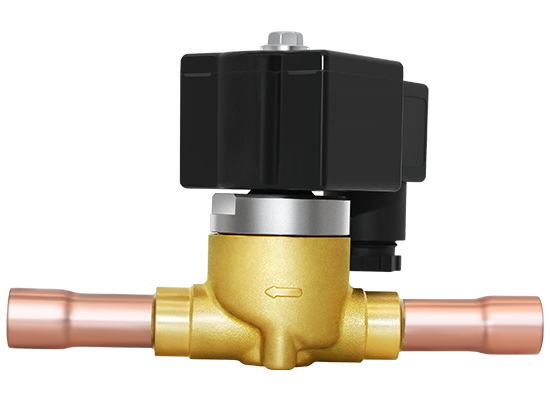

SANHUA SOLENOID VALVE (KDF series)

Description

Sanhua KDF Series: Features and Details

1. Core Function and Construction

• Valve Type: Piston Solenoid Valve. This design allows it to handle higher flow rates and withstand greater pressure differences compared to diaphragm or direct-acting valves.

• Function: Electrically controlled ON/OFF valve to regulate refrigerant flow.

• Normal Position: Typically available as Normally Closed (NC) (closed when de-energized).

• Primary Application: Refrigerant control in various devices like refrigerating/freezing systems, air conditioners, and heat pumps.

• Unique Application: Can be installed in the compressor exhaust pipe (discharge line).

  • Benefit: Its piston design and high-temperature rating make it suitable for handling the high-temperature refrigerant gas exiting the compressor.

• Design:

  • Compact Design to save installation space.

  • Detachable Design for easy maintenance.

  • Suitable for a variety of coils (interchangeability).

2. Technical Specifications

• Refrigerant Compatibility: Applicable for all common HFC, HFO refrigerants (e.g., R134a, R404A, R407C, R410A, R448A, R449A, R452A, R513A).

  • Note: As with other modern Sanhua lines, compatibility with specific A2L/A3 refrigerants (R32, R290) is typically available in specific model variations.

• Max. Refrigerant Temperature: High rating, typically up to +140C.

  • Benefit: Critical for use on the compressor discharge line where gas temperatures are highest.

• Maximum Operating Pressure (PS): Generally rated high, consistent with other large Sanhua solenoid valves (up to 4.5 MPa 45 bar).

• MOPD (Max. Operating Pressure Difference): Engineered for high MOPD to ensure reliable operation under high-differential conditions.

• Installation: Recommended flow direction corresponds to the arrow; typically installed with the coil upwards.
