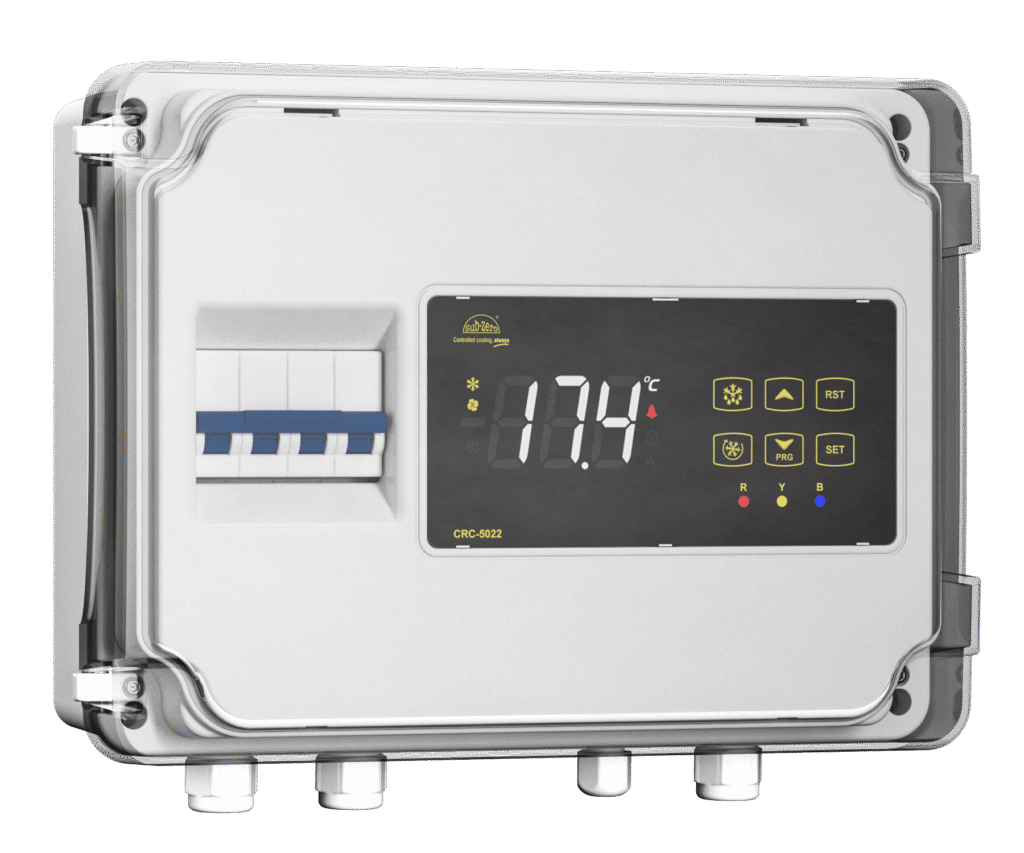

SUBZERO CRC-5022

 Wiring Diagram
 3D View

 YouTube



Electrical Panel for Medium Temperature Cold Room (Plastic Housing)

  • FR Grade Plastic Housing
  • Capacity: up to 10HP for 3 Phase, 20 A for Single Phase
  • 3 Digit, 2″ Display
  • Auto/Manual Defrost option available
  • Selectable Time, Temperature based Defrost
  • HP/LP, SPPR, VPR, AUX fault Inputs for compressor Protection
  • Quick Freeze Mode
  • Door Open fault Input
  • Internal Buzzer for Faults
  • Option for configuring Relay as Alarm or Light
  • R, Y, B Phase Indications & Fault Sensing
  • Compressor Current Measurement &  protection
  • Last 10 Fault Records
  • RS-485(Modbus) Connectivity
  • High & Low Temperature Logs
  • Application: Medium(Positive) Temp. Cold Room
Category: Brand:

Description

Tech Specification

Display

Customized 7 Segment White LED Display

Power Supply

440VAC

Probe Input

2 NTC

Temperature Range

-50.0°C to 50.0°C

Resolution

0.1°C or 1°C (Settable)

CT

For Compressor

Range

0.0 A to 20.0 A

Resolution

0.1A

Digital Input

Potential Free: Auxiliary Fault, Door Open; Potential(230V): SPPR, LP, HP, VPR

Relay Output

Compressor Contactor 5A, Condenser Fan 20(8)A, Evaporator Fan 20(8)A

Alarm Output / Buzzer

Alarm/Light – 10A, Internal Buzzer

Communication

RS-485 Serial port with Modbus RTU Protocol

Phase Protection

VPR

Mounting Type

Wall Mount

Size

330(W) x 230(H) x 121.5(D)mm
