Tech specification
|
Display |

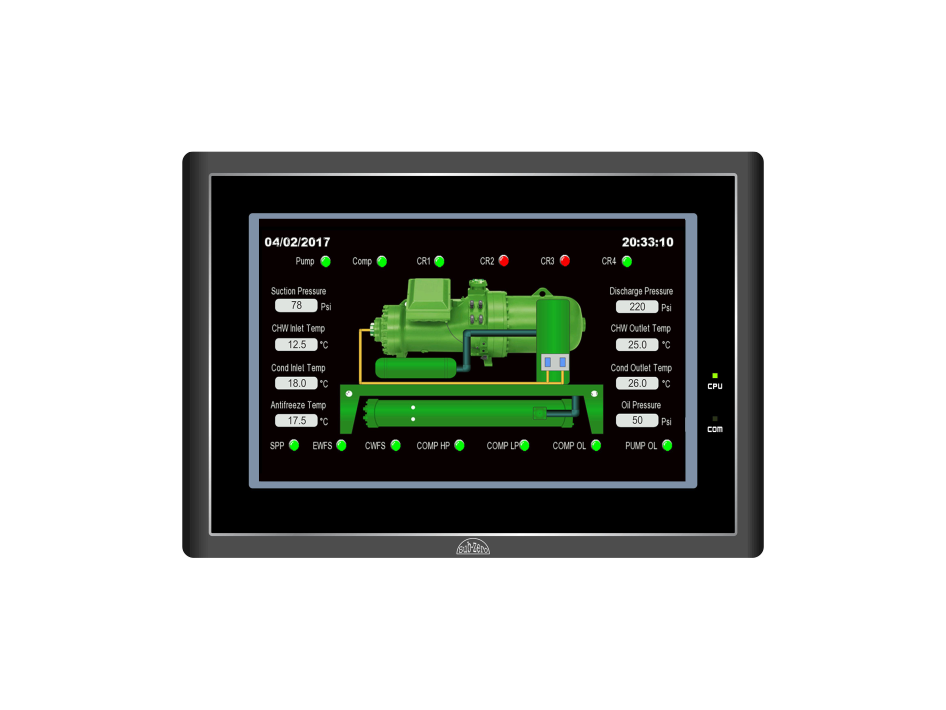

7″ HMI Touch Display |
|
Power Supply |
24Vac/dc |
|
Probe Input |
5 NTC |
|
Temperature Range |
-30.0°C to 80.0°C |
|
Resolution |
0.1°C |
|
Analog Input |
HP & LP (4-20mA), CT COMP & TOTAL CURRENT(5VDC) |
|
Digital Input |
Potential(230V): HP, LP, OSS, AFT, COMP OL, COND OL, PUMP OL, SPP, CWFS,EWFS, Medium Water Level , Low Water Level, R, Y, B |
|
Relay Output |
Compressor 5A, Condenser Fan 5A, Condenser Fan On HP Set point, LSV 5A, CHW Pump 5A, WSV 5A, Heater 5A |
|
Alarm Output |
Alarm 5A |
|
Communication |
RS-485 Serial port with Modbus RTU Protocol |
|
Size |
204(W) x 145(H) x 44.5(D)mm |
|
Mounting Type |
HMI: Panel Mount, Relay Board: Wall Mount |
|
Cut Out |
192 x 138mm |
