Boulton Trading Corporation > Products > Sub-Zero > SUBZERO PIC-1110

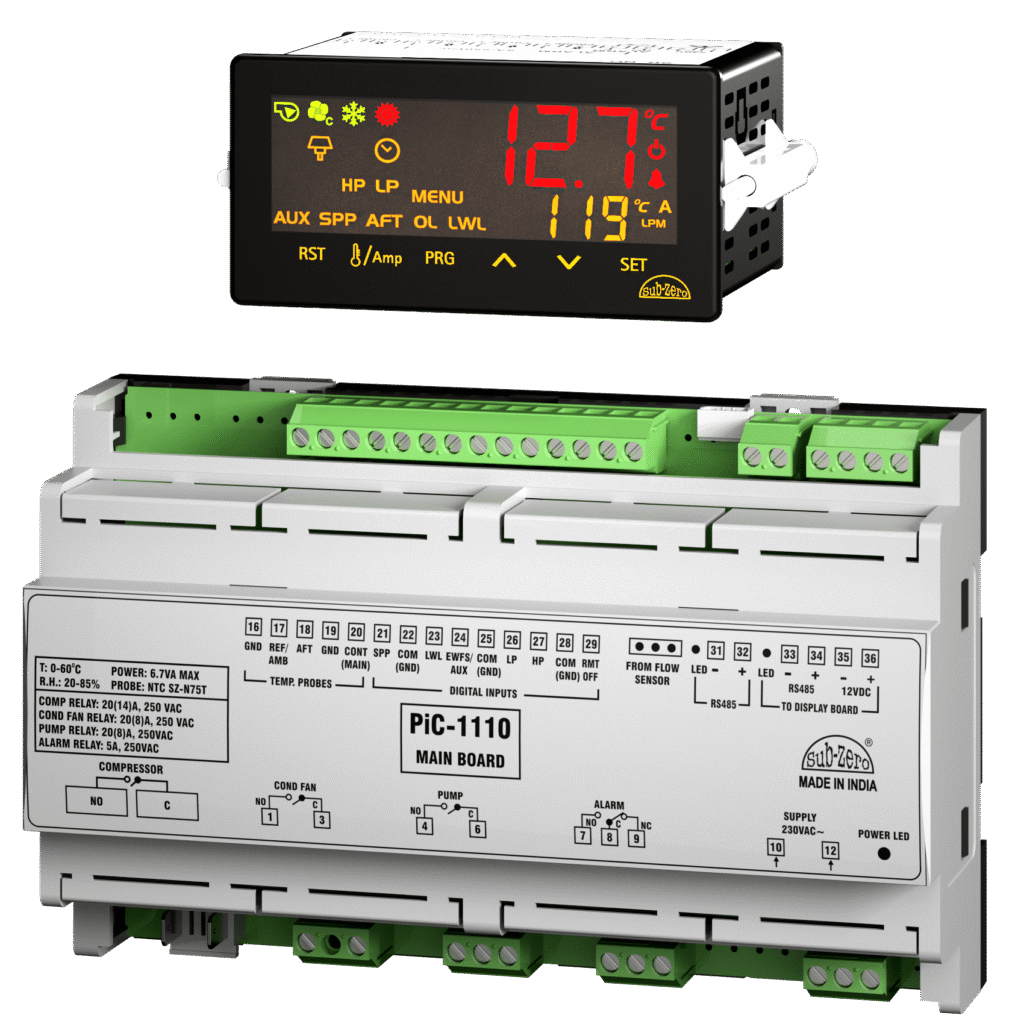

SUBZERO PIC-1110

Single Phase 1 Compressor Temperature Controller for Chiller

  • Split board design for ease of wiring
  • Large display with 20 Iconic LED’s for Status and Fault Indications
  • Heat, Cool and Differential Mode Selection
  • Touch Sensitive Keypad
  • 0.1⁰ Resolution for precision control
  • Antifreeze Temperature sensor for Compressor Safety
  • Configurable Flow Sensor Inputs Range 2 to 300 LPM
  • 3 Internal CTs  for Pump, Condenser and Compressors Current Measurement
  • EWFS, LWL and LPM Measurement for Safety of Pump
  • HP, LP, AUX, SPP fault Inputs for compressor protection
  • User Friendly and Password protected parameter settings
  • Run Hour measurement for Pump, Condenser Fans and Compressor
  • Last 10 Fault Record
  • Remote ON/OFF Input
  • Settable Second Line Display option
  • High & Low Temperature Logs
  • RS-485(Modbus) Connectivity
  • Application: Chiller
Category: Brand:

Description

Tech Specification

Display

Display(Red): 7 Segment LED Display, 4 x 16.5mm (0.65″), Display(Amber): 7 Segment LED Display, 4 x 9mm (0.35’’)

Power Supply

Relay Board: 230Vac, ±10%, 50/60Hz, Display Board: 12Vdc (From Relay Board)

Probe Input

3 NTC

Temperature Range

-30.0°C to 80.0°C or -30°C to 80°C

Resolution

0.1°C or 1°C (Settable)

Flow Sensor Input

For 1/2” Sensor: 2 to 25 LPM, For 3/4” and 1” Sensor: 2 to 60 LPM, For 1.25” Sensor: 2 to 120 LPM, For 1.5” Sensor: 5 to 200 LPM, For 2” Sensor: 10 to 300 LPM

Resolution

1 LPM

Digital Input

Potential Free: HP, LP, SPPR, EWFS, LWL, Remote
