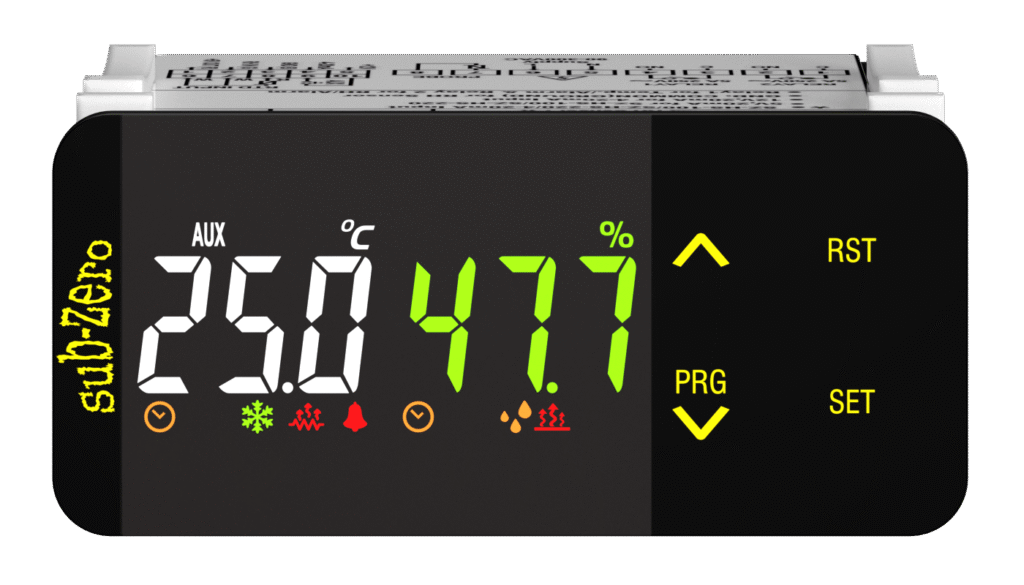

SUBZERO SZ-9932T

Temperature & Humidity Controller

Selectable Humidity Sensor-HS220/HS-100/4-20mA Input
Selection between NTC and Pt100 Sensor
Option for Sensor changeover in case the selected Temperature Sensor fails
Heating & Cooling Mode Selection
Dehumidification & Humidification Mode Selection
Separate Relay Output for Controlling Humidity and Temperature
Separate Display for RH and Temperature
High & Low Humidity and Temperature Logs
0.1 Resolution for Precise Control
Option for configuring Alarm Relay
Auxiliary DI Fault Input
Applications: Food/Medical Packaging houses, Warehouses, Timber Industries, Curing Processes, Horticulture, Textiles Industries, Cold Storage, Greenhouses, Mushroom Cultivation Rooms

Description

Display	Display(White): 7 Segment 3 x 11.5mm(0.45”), Display(Green): 7 Segment 3 x 11.5mm(0.45”)
Power Supply	90 to 300 Vac
Probe Input	1.NTC Probe, 2.RTD(PT100), 3.RH Sensor(SZ-HS-100/SZ-HS-220/4-20mA)
Temperature Range	-10°C to 99.0°C
Humidity Range	SZ-HS-220: 30.0% to 90.0%, SZ-HS-100/4-20mA: 0.0% to 100%
Resolution	Temp: 0.1°C or 1°C, RH: 0.1% or 1%
Relay Output	Relay1: 5A, 250VAC(Temperature or Alarm), Relay2: 5A, 250VAC(Humidity or Alarm)
Size	78(W) x 36(H) x 80(D)mm
Mounting Type	Panel Mount
